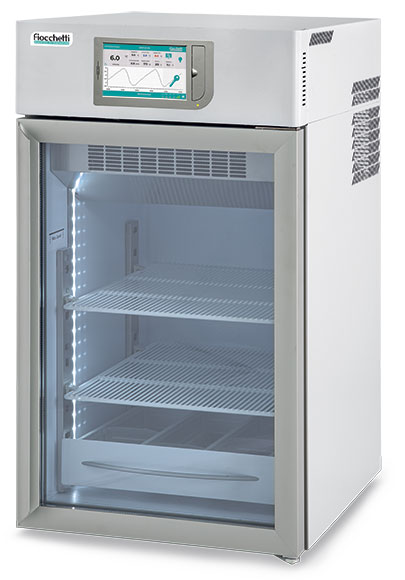

MEDIKA 140 TOUCH
Code MED0142

Small professional refrigerator, glass door type, Touchscreen and featuring data recording. The equipment is certified as Medical Device Risk Class I.

STRUCTURE AND REFRIGERATION

Inner dimensions: 44 x 51,6 x 56 cm

Nominal capacity: 140 l (4,94 cu ft)

Net capacity : 128 l (4,5 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 40 mm.

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 feet H=1,5 cm grant the maximum stability.

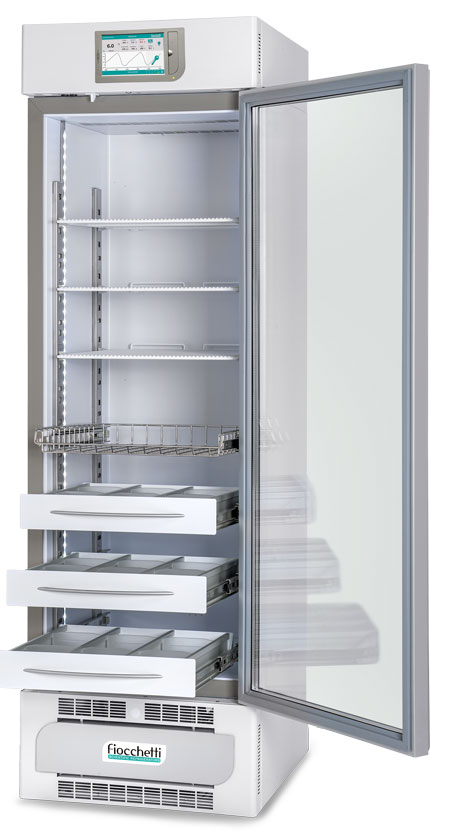

MEDIKA 400 TOUCH
Code MED0402

Medium size professional refrigerator, Touchscreen and glass door type, featuring data recording. The equipment is certified as Medical Device Risk Class I.

STRUCTURE AND REFRIGERATION

Inner dimensions: 50 x 48,5 x 140 cm

Nominal capacity: 400 l (14,12 cu ft)

Net capacity : 347 l (12,26 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

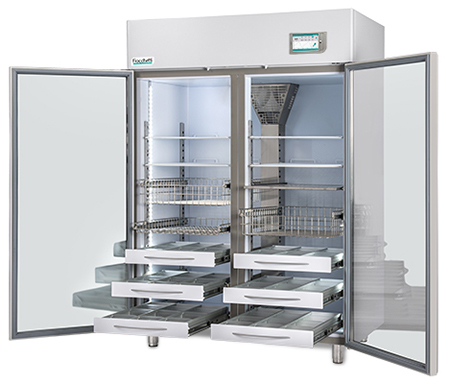

MEDIKA 1500 TOUCH
Code MED1502

Large volume professional refrigerator,equipped with nr 2 glass doors, Touchscreen and data recording. The equipment is certified as Medical Device Risk Class I.

STRUCTURE AND REFRIGERATION

Inner dimensions: 130 x 67 x 150 cm

Nominal capacity: 1500 l (59,27 cu ft)

Net capacity :1355 l (48,87 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 height adjustable feet included to grant maximum stability

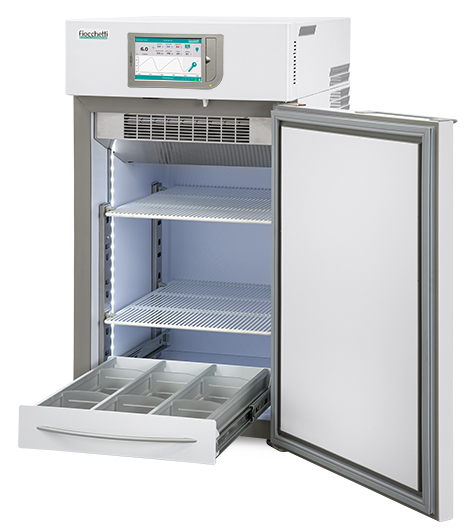

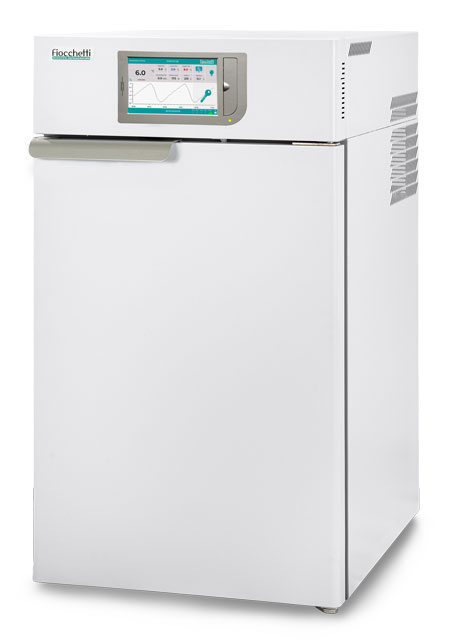

LABOR 140 TOUCH
Code LAB0142

Small professional medical refrigerator, solid door type, Touchscreen and featuring data recording. The equipment is certified as Medical Device Risk Class I.

STRUCTURE AND REFRIGERATION

Inner dimensions: 44 x 51,6 x 56 cm

Nominal capacity: 140 l (4,94 cu ft)

Net capacity : 128 l (4,5 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 40 mm.

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 feet H=1,5 cm grant the maximum stability.

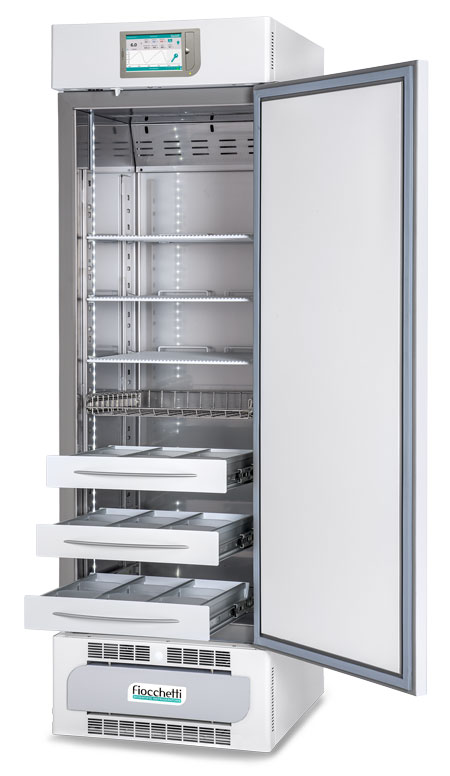

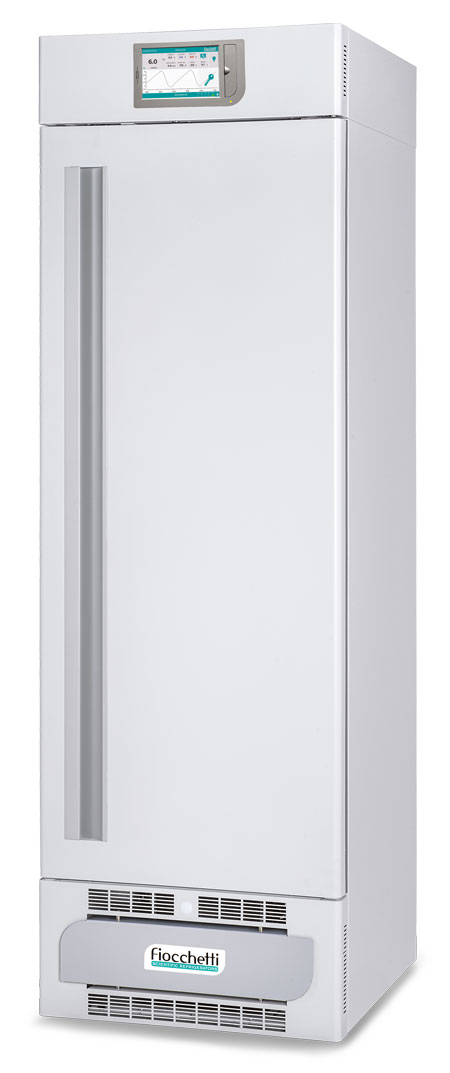

LABOR 400 TOUCH
Code LAB0402

Medium size medical refrigerator, solid door type, with Touchscreen and featuring data recording, it is certified as Medical Device Risk Class I.

STRUCTURE AND REFRIGERATION

Inner dimensions: 50 x 48,5 x 140 cm

Nominal capacity: 400 l (14,12 cu ft)

Net capacity : 347 l (12,26 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

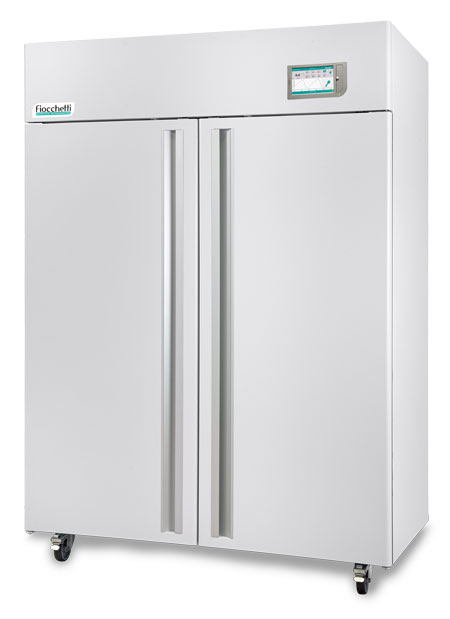

LABOR 1500 TOUCH
Code LAB1502

Large volume medical refrigerator, equipped with nr 2 solid doors, Touchsceen and data recording. The equipment is certified as Medical Device Risk Class I.

STRUCTURE AND REFRIGERATION

Inner dimensions: 130 x 67 x 150 cm

Nominal capacity: 1500 l (59,27 cu ft)

Net capacity :1355 l (48,87 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 height adjustable feet included to grant maximum stability

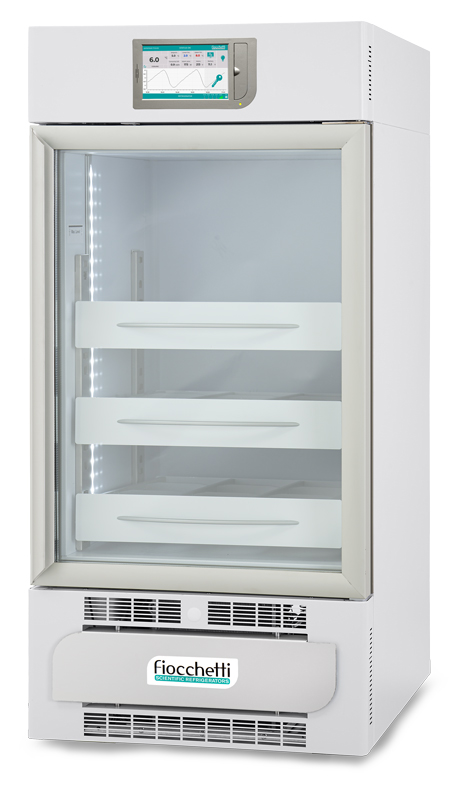

EMOTECA 170 TOUCH
Code DME0172

Small blood bank refrigerator, for blood and blood related products storage, certified as Medical Device

STRUCTURE AND REFRIGERATION

Inner dimensions: 50 x 48,5 x 73cm

Blood bags capacity (450 ml): nr. 90

Nominal capacity: 170 l (6,00 cu ft)

Net capacity: 179 l (6,32 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

EMOTECA 400 TOUCH
Code DME0402

Column type blood bank refrigerator, for blood and blood related products storage, certified as Medical Device

STRUCTURE AND REFRIGERATION

Inner dimensions: 50 x 48,5 x 140 cm

Blood bags capacity (450 ml): nr. 180

Nominal capacity: 400 l (14,12 cu ft)

Net capacity: 347 l (12,26 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

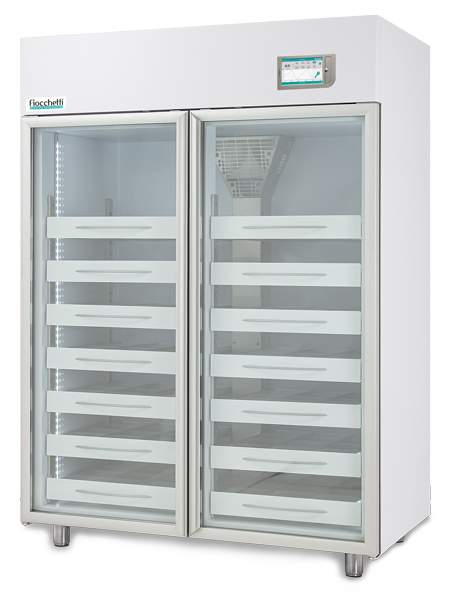

EMOTECA 1500 TOUCH
Code DME1502

Large volume blood bank refrigerator with two doors, for blood and blood related products storage, certified as Medical Device

STRUCTURE AND REFRIGERATION

Inner dimensions: 130 x 67 x 150 cm

Blood bags capacity (450 ml): nr. 672

Nominal capacity: 1500 l (59,27 cu ft)

Net capacity:1355 l (48,87 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 height adjustable feet included to grant maximum stability

PLASMA-FREEZER 140 TOUCH
Code DMF0142

Small freezer for plasma and blood related products storage ’till -20°C, certified as Medical Device

STRUCTURE AND REFRIGERATION

Inner dimensions: 44 x 51,6 x 56 cm

Nominal capacity: 140 l (4,94 cu ft)

Net capacity : 128 l (4,5 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 40 mm.

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

PLASMA-FREEZER 400 TOUCH
Code DMF0402

Medium size freezer for plasma and blood related products storage ’till -25°C, certified as Medical Device

STRUCTURE AND REFRIGERATION

Inner dimensions: 50 x 49 x 140 cm

Nominal capacity: 400 l (14,12 cu ft)

Net capacity : 347 l (12,26 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

PLASMA-FREEZER 1500 TOUCH
Code DMF1502

Freezer for plasma and blood related products storage ’till -25°C, with two solid doors, certified as Medical Device

STRUCTURE AND REFRIGERATION

Inner dimensions: 130 x 69 x 151 cm

Nominal capacity: 1500 l (59,27 cu ft)

Net capacity :1355 l (48,87 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 height adjustable feet included to grant maximum stability
